รายละเอียดสินค้า นาฬิกา Seiko QCG-200 GPS Synchronization Master Clock จากญี่ปุ่น
QCG-200 เป็นนาฬิกาหลักที่สามารถเชื่อมต่อสัญญาณ GPS (Global Positioning System) ทำให้สัญญาณนาฬิกาทั้งหมดในระบบมีความเทียงตรงสูงสุด มีจานรับสัญญาณดาวเทียม (GNS-300) ที่ผลิตขึ้นมาโดยเฉพาะ สามารถเชื่อมต่อได้ทั้งนาฬิกา เข็มและตัวเลขของ Seiko
(หมายเหตุ สินค้าในกลุ่มนี้อยู่ในข้อตกลง JTEPA)
(ราคาไม่รวม VAT และราคาอาจมีการเปลี่ยนแปลงขึ้นอยู่กับค่าเงินที่อาจเปลี่ยนไปและขึั้นอยู่กับทางโรงงาน Seiko มีการปรับเปลี่ยนราคา โปรดติดต่อบริษัท เพื่อให้ตรวจสอบและยืนยันราคาปัจจุบันกับทางโรงงานทุกครั้ง)
สามารถดู clip สอนวิธีการตั้ง ได้จาก https://youtu.be/MlJV_fpJVs0
Power supply
|
【Range of voltage】AC85~264V
【Range of frequency】47~63Hz
【Power consumption】50W
|
Input/Output signals
|
【1-sec. polarized signal】
Controlled by 2 wires ( only clockwise )

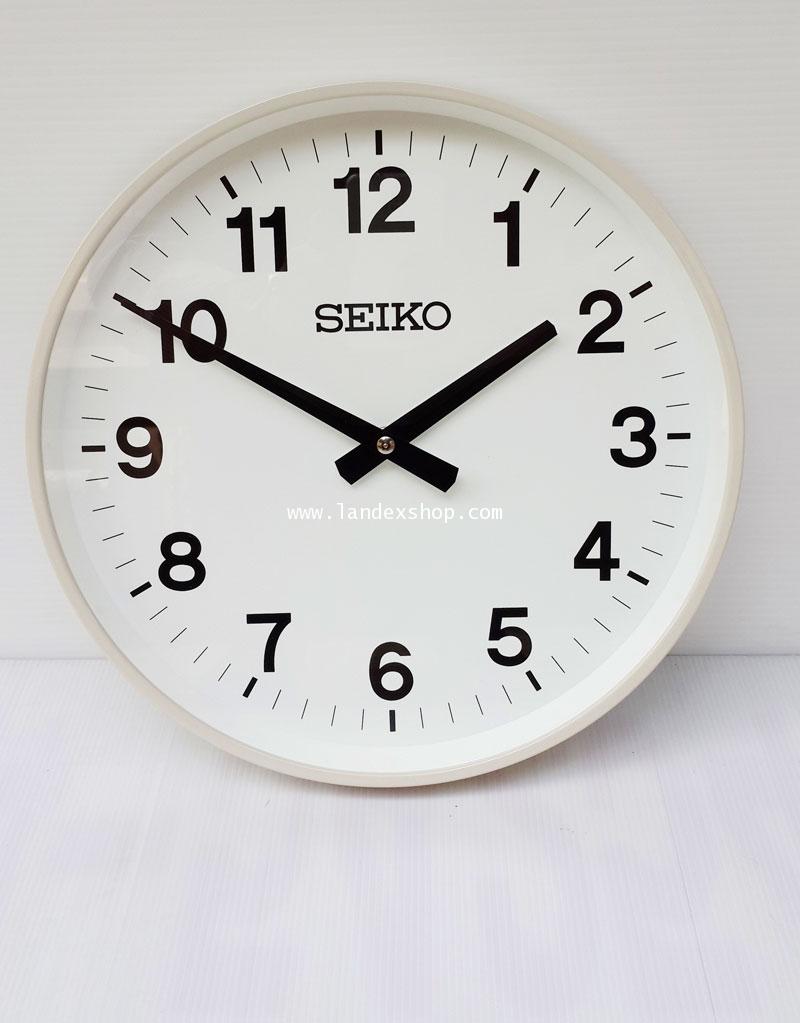

(Max. 110pcs. of analog secondary clocks can be connected,
together with analog secondary clocks of 30-sec. signal. )
【30-sec. polarized signal】
Controlled by 2 wires ( only clockwise )
(Max. 110pcs of analog secondary clocks can be to connected,
together with analog secondary clocks of 1-sec. signal. )
【GPS I/F】
* To be connected the exclusive GPS antenna with receiver
unit (GNS-300). Available separately.
Data input :Serial data (in accordance with RS-422)
1PPS input :Received by 2 wires
Power supply :DC5V (powered by QCG-200)
Sealed :1 wire
* To be connected with 6 sealed wires cable (as an option)
【Serial data signal output】
RS-422 :Time information
(Year/Month/Day/Date/Hour/Minute/Second)
in SEIKO format shall be sent every second.
|
Performance/Functions
|
【Crystal oscillation】Crystal oscillator (32.768KHz)
【Accuracy of internal clock】within ±0.1s/day (0℃~+40℃)
【Time accuracy when synchronized by GPS signal】within ±5ms
【Frequency of synchronizing with GPS signal】Every 10 min.
【Operational temperature range】0℃~+50℃
【LCD display】16digits 2 lines with back light
【Operation unit】8keys
【How to adjust the time】
When powering on :
Automatic setting by GPS or manual setting by key input
When operating :
Periodical and automatically synchronization by GPS signal
or manual setting by key input
Setting for Time difference :Manual setting by key input
* Against UTC, time difference from -12h to +14h can be set by
minutes.
【Daylight saving time】Manual setting by key input
【Leap second】Manual setting by key input
【Over current protection】
Power input :Non-fuse breaker
Internal circuit :Fuse 5A
Secondary clock signal output :Non-fuse breaker
【Alarm detection】
If this product detects a decrease in voltage in internal circuit and
NFB in secondary clock signal output, the ALARM LED lamp lights up.
|
Usage environment
|
【Operational temperature and humidity range】
0℃~+50℃/ 20~90%with no dew condensation
|
Overall dimensions
|
W480mm x H88mm x D280mm
(excluding protruded portion)
|
Weight
|
3.5kg
|
Material
|
Steel with painting(pearl-gray)
|
|
